What is a side-mount pool sand filter?

A side-mount pool sand filter is a type of sand filter where the multiport control valve is mounted on the side of the filter tank. The valve controls functions such as filter, backwash, rinse, waste, recirculate, and closed.

What are the advantages of a side-mount sand filter?

Side-mount filters are often easier to service because the valve is more accessible, and they usually have a lower overall height profile which can help in tight equipment spaces.

How do I backwash a side-mount sand filter?

Turn off the pump, set the valve to 'Backwash', run the pump until the sight glass clears (usually 2–3 minutes), then set to 'Rinse' for about 30 seconds, and return to 'Filter'.

Is a side-mount sand filter better than a top-mount?

Neither is inherently better; selection depends on preference and installation logistics. Side-mount valves may be easier to service, while top-mount valves can be more compact.

What kind of sand do I use in a side-mount filter?

Use #20 silica sand graded for pool filters with a grain size of 0.45–0.55 mm. Avoid play sand or construction sand.

How much sand does my side-mount filter need?

The amount varies by filter diameter/model. Check the specific model capacity and do not overfill or underfill; the sand level is typically about halfway up the tank.

Can I use glass media instead of sand in my side-mount filter?

Yes, many side-mount sand filters support alternative media like recycled glass which can filter finer particles and may last longer, but confirm compatibility for your specific model.

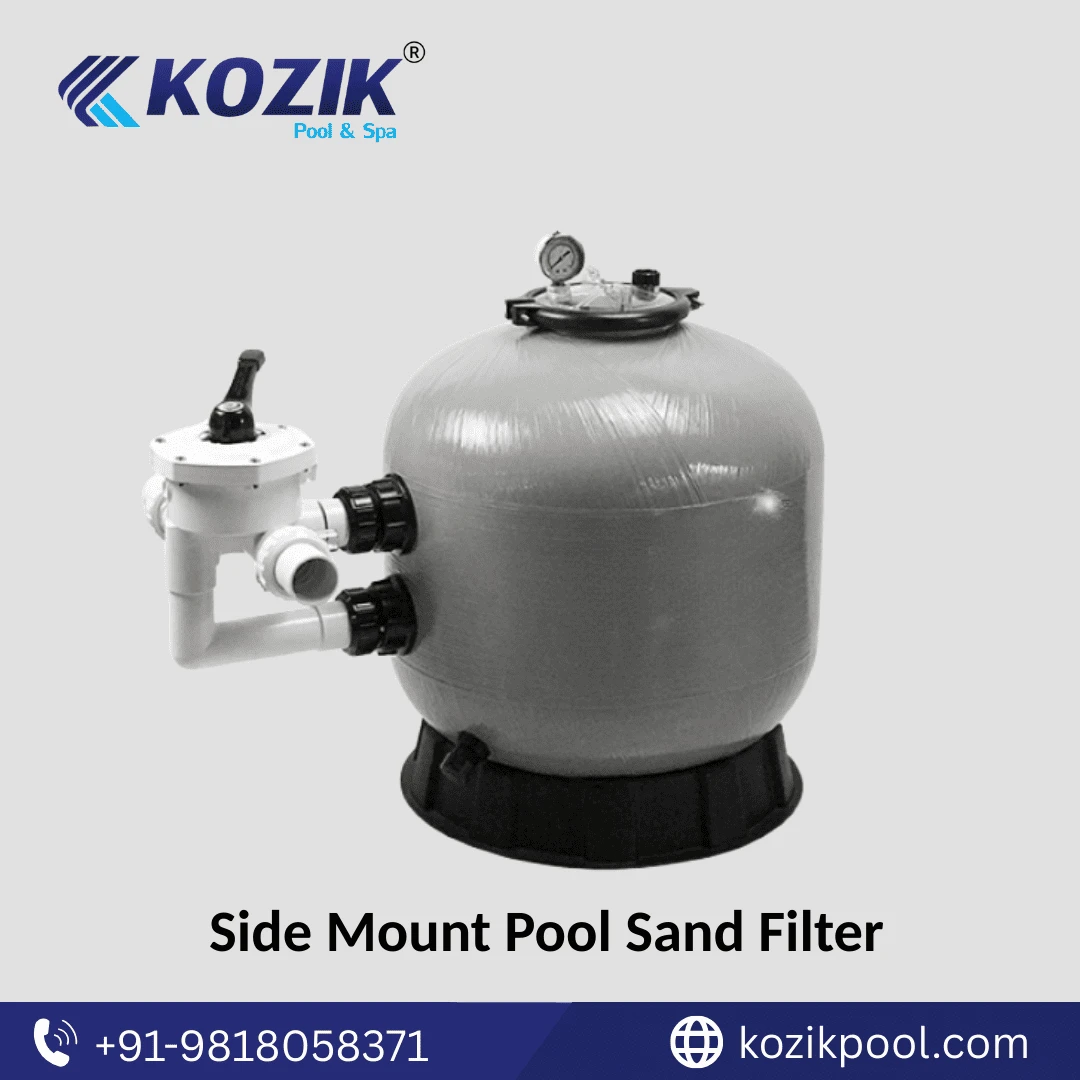

Side Mount Pool Sand Filter

The Side Mount Pool Sand Filter from Kozik Pool & Spa is a high-performance, low-maintenance filtration solution designed to deliver crystal clear, hygienic pool water in residential, commercial, and public swimming pools. Utilizing a side-mounted multiport valve, this top-rated filter provides efficient control and easy access for maintenance operations like backwashing, rinsing, filtering, and more.

Crafted from corrosion-resistant, UV-stabilized polyethylene or fiberglass-reinforced plastic, the filter tank is built to withstand harsh weather, intense sunlight, and chemically treated water. Its rugged construction ensures long-term durability with minimal wear, while the side-mount valve configuration offers space-saving installation flexibility and a streamlined piping layout.

Whether used in new pool constructions or retrofits, this best-in-class sand filter system is ideal for medium to large-sized pools that require consistent filtration performance with reduced operational complexity. As a leading manufacturer and supplier, Kozik Pool & Spa ensures this filter delivers unmatched reliability.

Key Features of Side Mount Pool Sand Filter :

Durable Construction: Made from fiberglass-reinforced plastic (FRP) or high-density polyethylene (HDPE). UV and corrosion-resistant to withstand pool chemicals and outdoor exposure. Seamless body design ensures leak-free operation.
Side Mount Multiport Valve: Ergonomically positioned valve allows for easy access and operation. Functions include Filter, Backwash, Rinse, Waste, Recirculate, and Closed. Reduces pipe clutter and simplifies plumbing for tight spaces.
Efficient Filtration Media: Compatible with silica sand, glass media, or zeolite. Ensures fine particle removal and improved water clarity. Large filter bed depth for enhanced dirt trapping and longer cycles between backwashing.
High Flow Rate: Engineered for high-capacity water flow with low resistance. Ideal for pools with frequent usage or high swimmer loads.
Top Diffuser & Laterals: Built-in top diffuser ensures even distribution of water across the sand bed. Internal laterals promote balanced flow and prevent clogging.
Pressure Gauge & Drain Plug: Easy-to-read pressure gauge monitors internal filter pressure. Drain plug allows for easy sand replacement and maintenance.

Technical Specifications of Side Mount Pool Sand Filter :

Filter Diameter: 450 mm to 900 mm (18” to 36”)
Flow Rate: 10 m³/h to 35 m³/h
Valve Size: 1.5" / 2"
Maximum Working Pressure: 2.5 to 3.5 Bar
Sand Capacity: 45 kg to 250 kg depending on model

Applications of Side Mount Pool Sand Filter :

Residential in-ground and above-ground swimming pools
Hotel, resort, and club pools
Commercial water parks and public pools
Hydrotherapy and spa pools
Fish ponds and water features

Why Choose Us For Side Mount Pool Sand Filter?

With easy accessibility, robust design, and superior filtration performance, the Kozik Pool & Spa Side Mount Sand Filter is a reliable choice for pool owners and operators who demand clean, healthy water with minimal maintenance. Its side valve setup simplifies plumbing and provides a clean look, while its proven sand filtration system ensures long-lasting water purity. As a trusted manufacturer and supplier, we stand behind the quality and durability of our products, ensuring you receive the best side mount sand filter on the market. Choose Kozik for a partnership built on quality and performance.

Frequently Asked Questions

A side-mount pool sand filter is a type of sand filter where the multiport control valve is mounted on the side of the filter tank. This is in contrast to top-mount filters where the valve is on top. The valve is used to control the filter's functions: filter, backwash, rinse, waste, recirculate, and closed.

Side-mount filters are often easier to service because the valve is at a more accessible height, especially if the filter is installed in a tight equipment area. They also tend to have a lower overall height profile, which can be beneficial in spaces with low headroom.

To backwash, first turn off the pump. Then, rotate the side-mount valve handle to the 'Backwash' position. Turn the pump on and let it run until the water in the sight glass runs clear (usually 2-3 minutes). Turn the pump off, move the valve to 'Rinse', run for about 30 seconds, then turn off the pump and return the valve to 'Filter'.

Neither is inherently 'better'. The choice often comes down to personal preference and installation logistics. Side-mount valves are considered by some to be easier to repair or replace parts on, while top-mount valves offer a more compact, all-in-one unit.

You should use #20 silica sand specifically graded for pool filters, with a grain size of 0.45-0.55 mm. Do not use play sand or construction sand, as it is the wrong size and can damage the filter's internal components.

The required amount of sand varies based on the filter's diameter. Consult your filter's manual for the exact capacity. It is crucial not to overfill or underfill. The sand level should typically be about halfway up the filter tank.

Yes, many modern side-mount sand filters are compatible with alternative filter media like recycled glass. Glass media can filter finer particles and may last longer than traditional sand, but check your filter's warranty and specifications first.
